Assemble and setup the Rokoko Headcam

In this article:

A detailed overview of how to assemble and connect your Rokoko Headcam for the first time.


What’s in the Box

Headcam consisting of:

  • Front part

  • Back part (with attached velcro strap)


  • Foam padding in three different sizes

  • 2 loose velcro pads to connect to the Smartsuit Pro II head sensor


How to Set Up

1. Assemble Your Headcam

a) Pull the top strap that goes from the back part of the Headcam through the loop on the front part and secure it in place with the velcro.


b) Slide and click the back part into the front part, ensuring that the top velcro strap is oriented on the top of the product as pictured.


Disassemble

⚠️If you need to take your Headcam apart, follow the guide on:
rokoko.com/headcam

2. Adjust the Headcam to Fit You

a) Find the most comfortable size of the side padding for your head size and shape and attach it to the insides of the Headcam.


b) Place the Headcam on your head.

c) Adjust the top velcro strap.

d) Adjust the tightening mechanism on the back.


⚠️ Note of Caution
Avoid using excessive force when adjusting the tightening mechanism.

3. Check Camera

a) Make sure the Headcam sits on your head at an angle that allows the camera to capture your entire face.

For optimal performance, the camera should be level with your nose tip and pointing horizontally at your face.
(It should not point up your nose.)


b) Make sure your face is in focus.
If not, carefully adjust the focus by rotating the camera lens.


4. Set up and Capture

To capture data in Rokoko Studio:

  • Download the Rokoko Face capture app from the Android Marketplace.

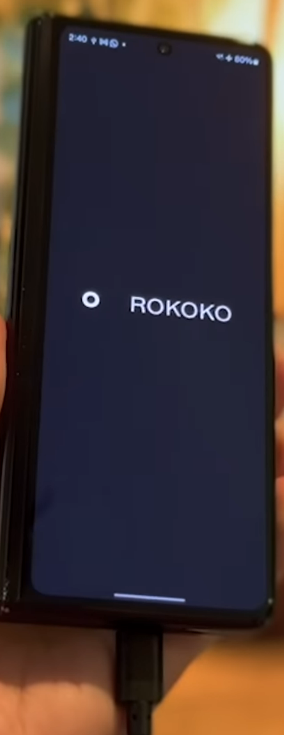

  • Open the Rokoko Face capture app.

  • Plug the USB cable into an android device using the USB C of the Headcam.

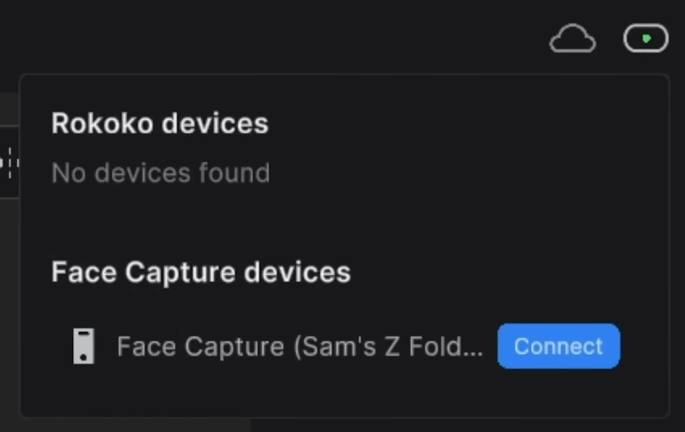

  • Open Rokoko Studio and click "Connect". This "connect" message should appear automatically after connecting the Headcam to the android phone.


    You are ready to Capture!

a) The Headcam can be connected to all devices that support external USB cameras, such as:

  • Android phones

  • Computers

For android phones, the Rokoko Face capture app is needed for the Headcam data to pass through Rokoko Studio.

Use the Headcam as a video source in any application that accepts external camera input.

b) The Headcam features dimmable LEDs for fill light.

  • Three different light intensities can be toggled by tapping on the rear side of the camera.

  • If capturing in an environment with poor lighting, brighter LEDs are recommended.


How to Use the Headcam with Smartsuit Pro II

a) The included loose velcro pad should be stuck on the side of the Headcam.


b) Attach the head sensor from your Smartsuit Pro II to the velcro pad on your Headcam.


Product Specifications

Physical

  • Dimensions: 160 x 190 x 450 mm (H x W x L)

  • Weight: 240 g

Camera

  • Sensor: RGB

  • Max resolution: 1600 x 1200

  • Frame rate: 60 FPS

  • Shutter type: Electronic global shutter

Other

  • Fill light: Dimmable LEDs

  • Microphone: Yes

  • Connection type: USB 2.0 (Type-C connector)

  • Supply voltage: DC 5V

Support

Need to reach us?

Email: support@rokoko.com
Website: rokoko.com

You can also watch our product onboarding series on our YouTube channel.

The latest version of this Quick Start Guide is available at:
support.rokoko.com
