A detailed overview of how to assemble and connect your Rokoko Headcam for the first time.
What’s in the Box

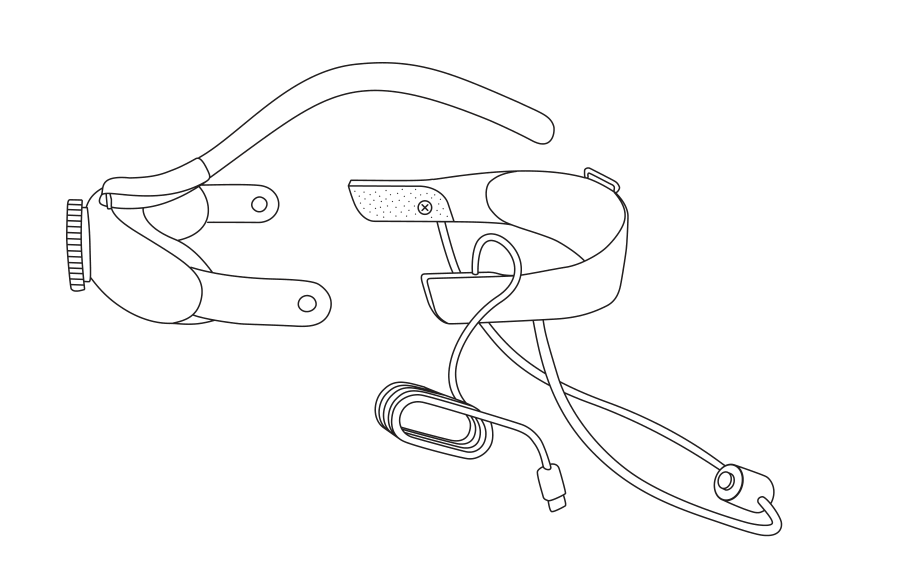

Headcam consisting of:
Front part
-
Back part (with attached velcro strap)

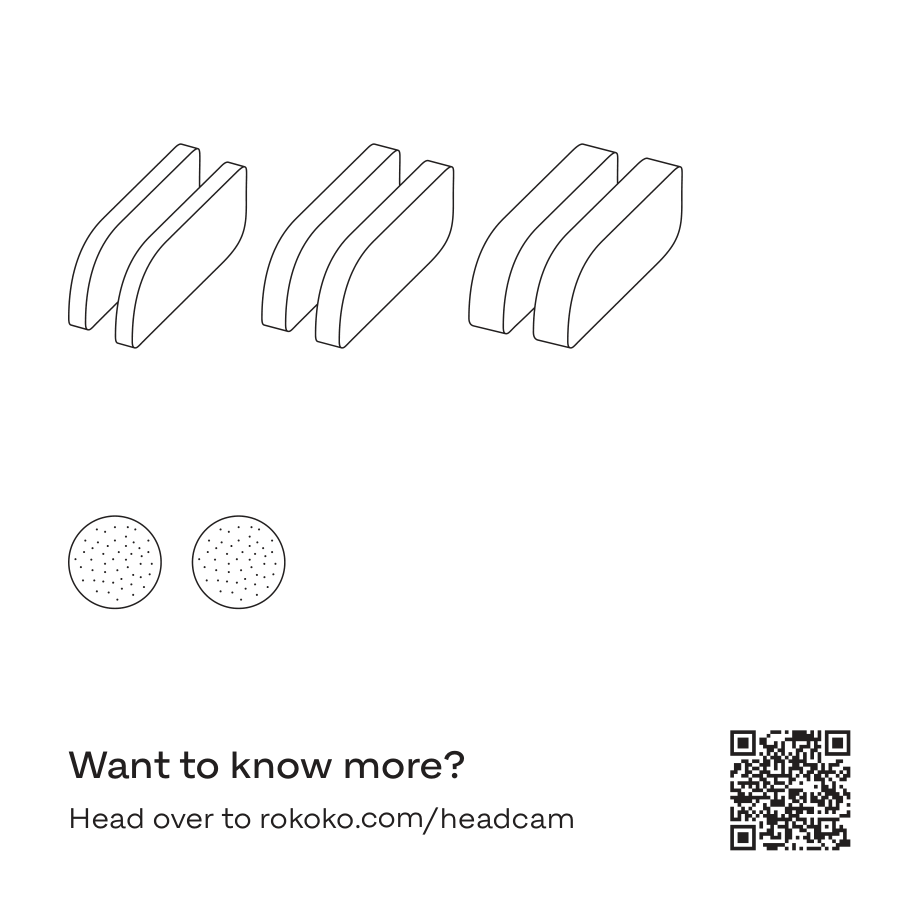

Foam padding in three different sizes
2 loose velcro pads to connect to the Smartsuit Pro II head sensor
How to Set Up
1. Assemble Your Headcam

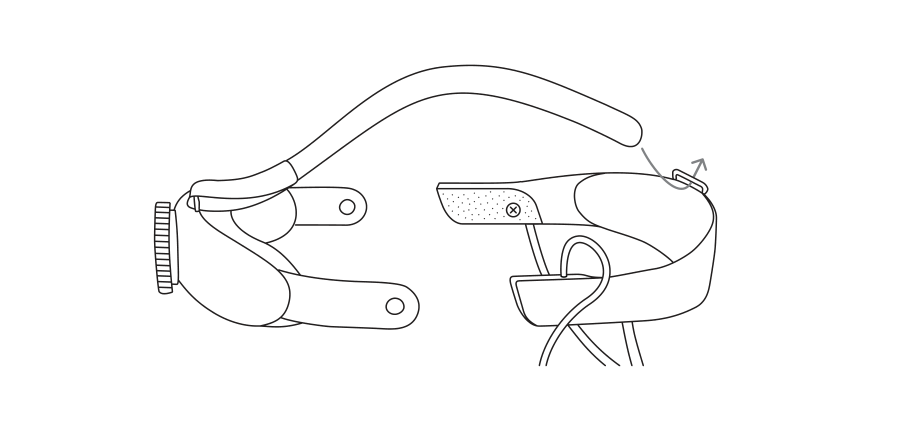

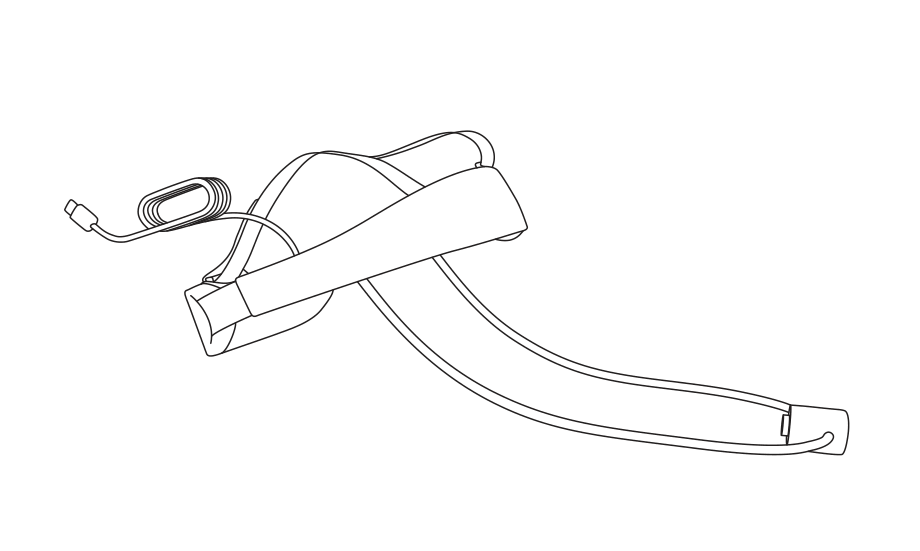

a) Pull the top strap that goes from the back part of the Headcam through the loop on the front part and secure it in place with the velcro.

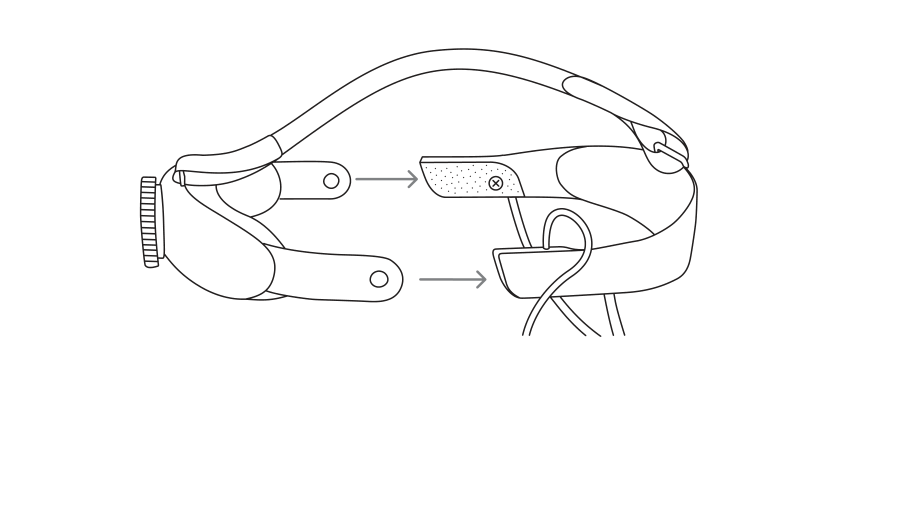

b) Slide and click the back part into the front part, ensuring that the top velcro strap is oriented on the top of the product as pictured.
Disassemble
⚠️If you need to take your Headcam apart, follow the guide on:
rokoko.com/headcam
2. Adjust the Headcam to Fit You

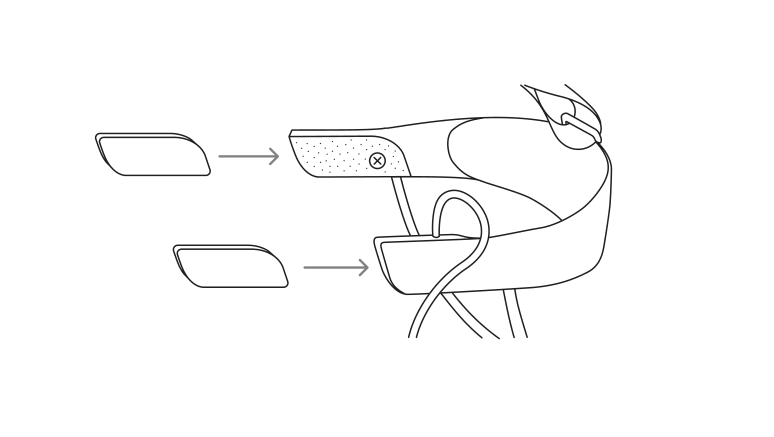

a) Find the most comfortable size of the side padding for your head size and shape and attach it to the insides of the Headcam.
b) Place the Headcam on your head.
c) Adjust the top velcro strap.

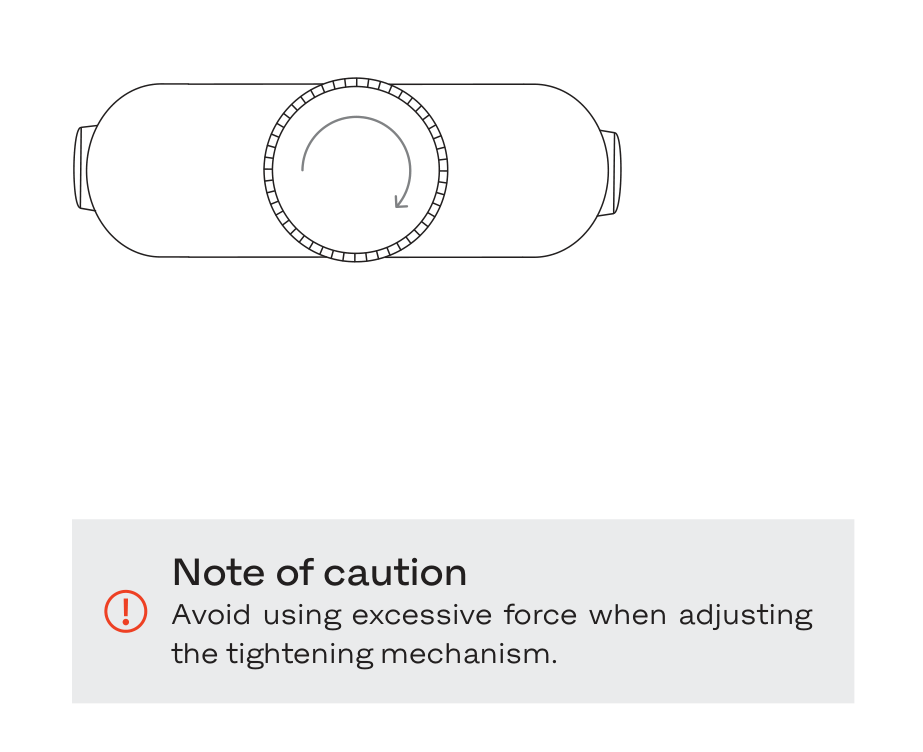

d) Adjust the tightening mechanism on the back.
⚠️ Note of Caution
Avoid using excessive force when adjusting the tightening mechanism.
3. Check Camera

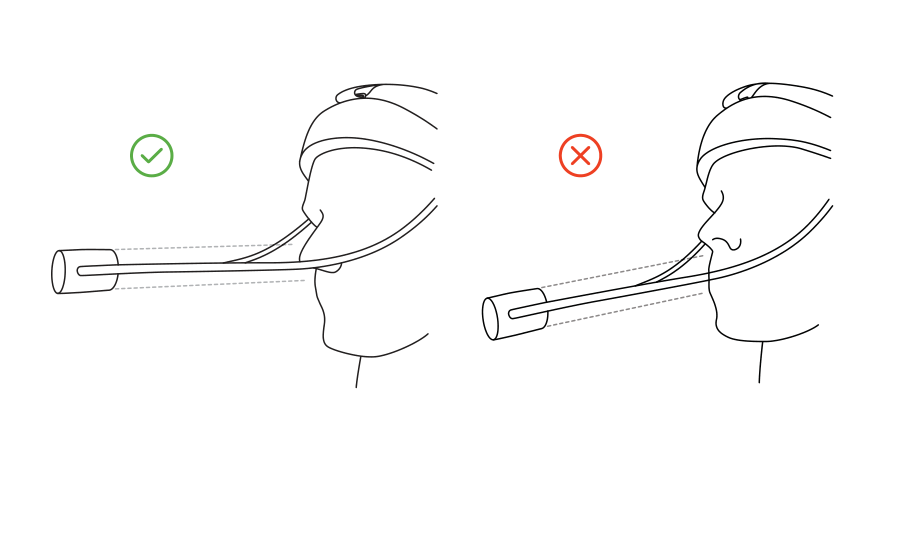

a) Make sure the Headcam sits on your head at an angle that allows the camera to capture your entire face.
For optimal performance, the camera should be level with your nose tip and pointing horizontally at your face.
(It should not point up your nose.)
b) Make sure your face is in focus.

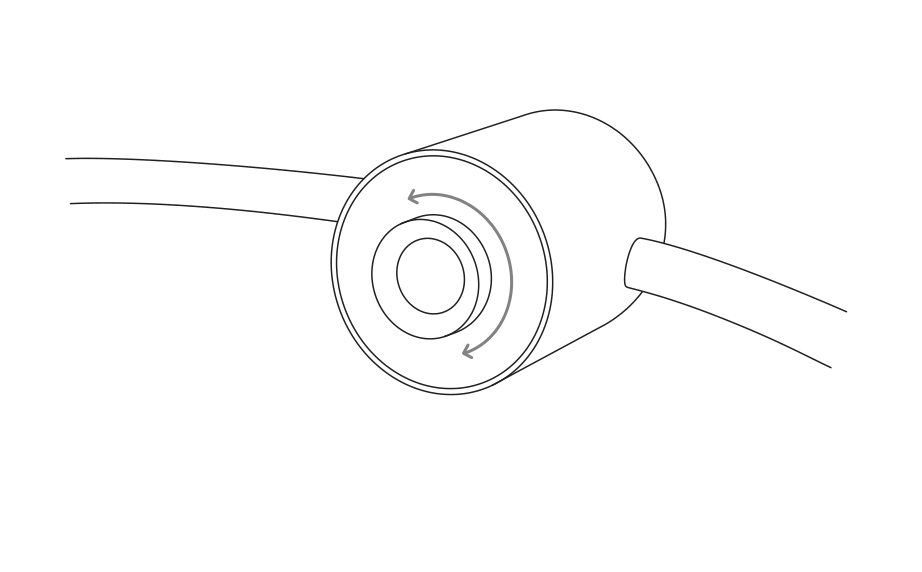

If not, carefully adjust the focus by rotating the camera lens.
4. Capture
a) To capture, plug the USB cable into a device that supports external USB cameras, such as:
Android phones
Computers
Use the Headcam as a video source in any application that accepts external camera input.
b) The Headcam features dimmable LEDs for fill light.

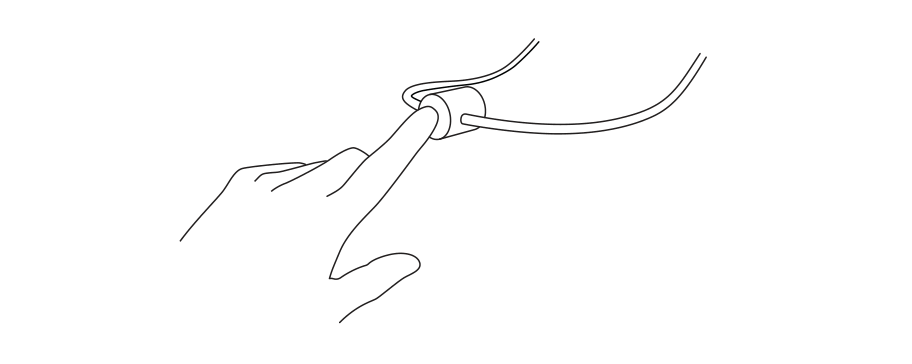

Three different light intensities can be toggled by tapping on the rear side of the camera.
If capturing in an environment with poor lighting, brighter LEDs are recommended.
How to Use the Headcam with Smartsuit Pro II

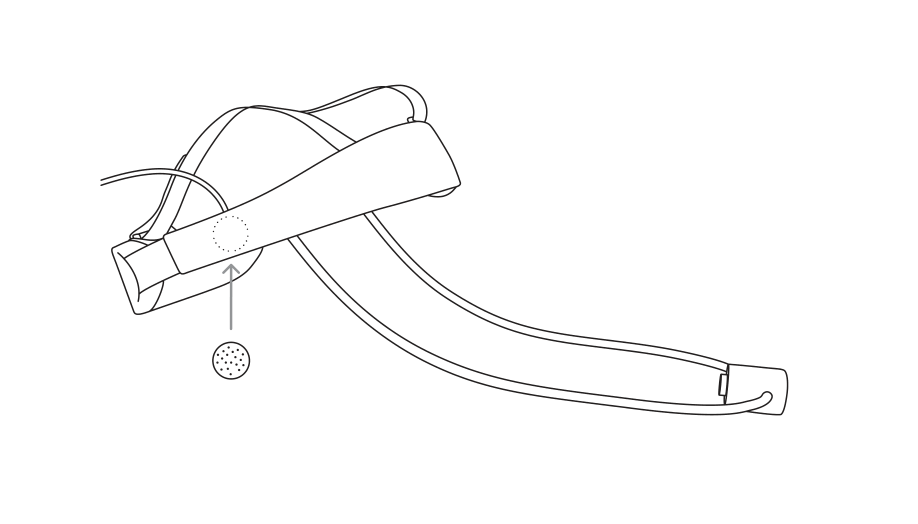

a) The included loose velcro pad should be stuck on the side of the Headcam.

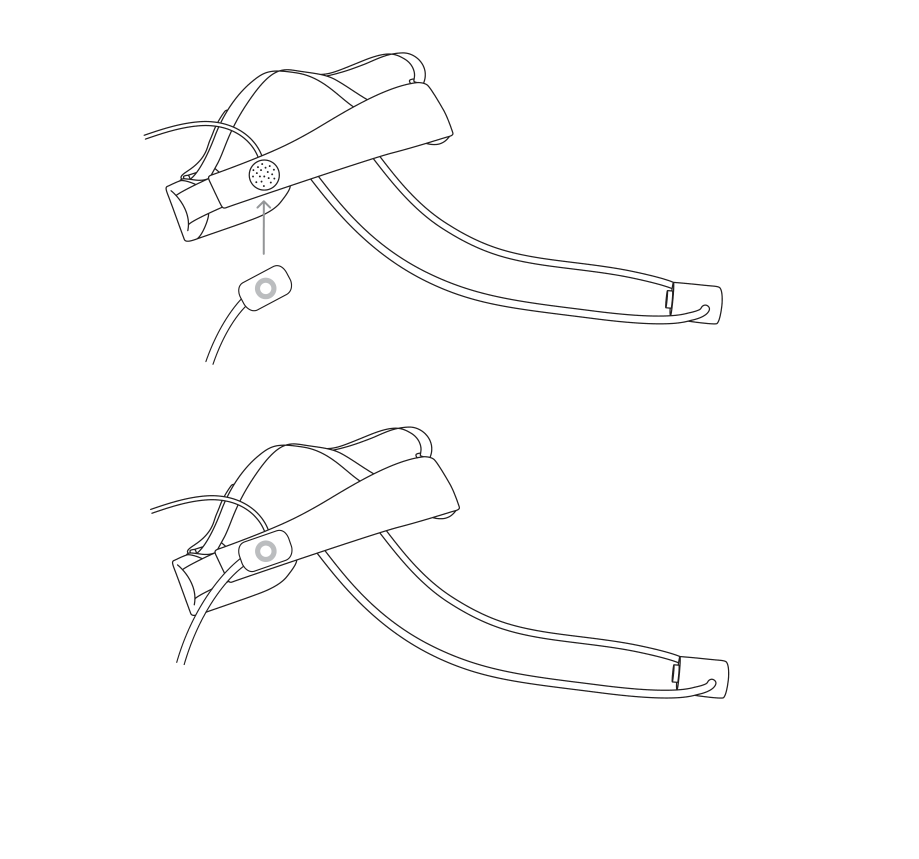

b) Attach the head sensor from your Smartsuit Pro II to the velcro pad on your Headcam.
Product Specifications
Physical
Dimensions: 160 x 190 x 450 mm (H x W x L)
Weight: 240 g
Camera
Sensor: RGB
Max resolution: 1600 x 1200
Frame rate: 60 FPS
Shutter type: Electronic global shutter
Other
Fill light: Dimmable LEDs
Microphone: Yes
Connection type: USB 2.0 (Type-C connector)
Supply voltage: DC 5V
